CAMPUS E-Bikes
Models with Go SwissDrive
Some CAMPUS models are equipped with Go SwissDrive systems. Are you riding a CAMPUS e-bike and need a repair or are you looking for a competent maintenance service? Then you've come to the right place.
Table of Contents
About the Campus brand
CAMPUS is an established manufacturer of high-quality e-bikes and trekking bikes, known for its many years of experience and commitment to innovation. The brand is based in central Switzerland and combines inspiration from the foothills of the Alps with the development of functional and high-performance bikes. CAMPUS relies on reliable and powerful drive systems, such as the Go SwissDrive motor, which ensures exceptional riding performance, both on sporty tours and in everyday life
Campus e-bike models with Go SwissDrive systems
The Go SwissDrive system has been installed in some models of the Campus e-bikes.
The motor system can be found in the models:
- CAMPUS GSH 10 Alivio
- CAMPUS GSH 10 Deore
- CAMPUS GSH 10 LX
- CAMPUS GSH 10 XT
- CAMPUS GSH 10 XT Deore
- CAMPUS GSH 12 Deore
- CAMPUS GSH 12 LX
- CAMPUS GSH 12 TX Deore
- CAMPUS GSH 9 Alivio
- CAMPUS GSH 9 LX
- CAMPUS GSH 9 XT Deore
- CAMPUS GSH9
Besonderheiten der Modelle
All models in the CAMPUS GSH series are equipped with Go SwissDrive motors, which are known for their reliable performance and high efficiency. CAMPUS deliberately chose Go SwissDrive motors because they offer an ideal combination of durability, smooth running and performance - characteristics that are particularly well suited to the diverse requirements of the GSH series. These motors offer smooth power delivery and high energy efficiency, which increases the range of the bikes and makes them particularly suitable for everyday use and long distances.

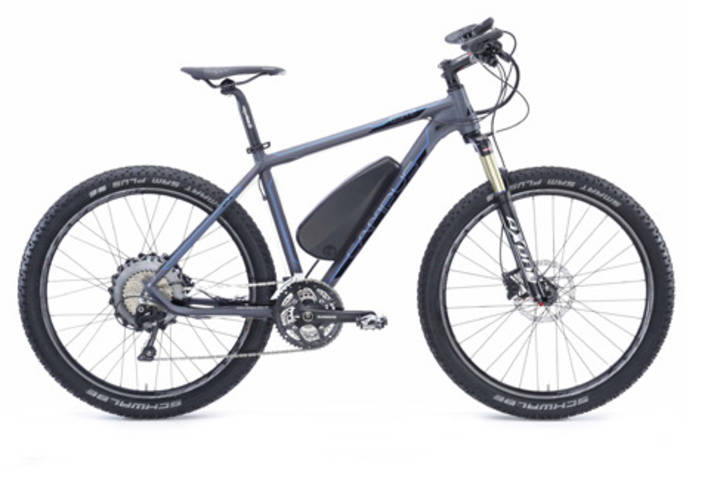

CAMPUS GSH 12 Deore
- Modelljahr 2017
- Kategorie Mountain Bike / ATB | 27,50 Zoll
- E-bike type Pedelec | up to 25 kmh
- Frame unisex
- Rahmen Größen 44,48,52
- Gewicht 23 kg
- Reichweite 150 km
- Motor GO SwissDrive Cruise motor
- Display EVO
- Motor position rear wheel hub
- Motor power 250 watts
- Support up to 25 kmh
- Battery type Lithium-ion battery
- Akku Eigenschaften 558.00 Wh / 15.50 Ah / 36.00 V
- Battery position down tube
- Reichweite 150 km
- Derailleur type gear
- Anzahl Gänge 30
- Brakes Type Hydraulic disc brakes
- Bremsen Modell Shimano M506
- Kompatibler Akku im Shop erhältlich:
- BMZ Unterrohr Akku BikeBus 15,5Ah, 558Wh 24832-1
- Kompatibler Lader im Shop erhältlich:
- BMZ Ladegerät 36V 2A, Rosenberger, 27680
- Model year 2017
- Category Mountain Bike / ATB | 27.50 inch
- E-bike type Pedelec | up to 25 kmh
- Frame unisex
- Frame sizes 44,48,52
- Weight 23 kg
- Range 150 km
- Motor GO SwissDrive Cruise motor
- Motor position rear wheel hub
- Motor power 250 watts
- Support up to 25 kmh
- Battery type Lithium-ion battery
- Battery features 558.00 Wh / 15.50 Ah / 36.00 V
- Battery position down tube
- Range 150 km
- Derailleur type gear
- Number of gears 30
- Brakes Type Hydraulic disc brakes
- Brake model Shimano M506

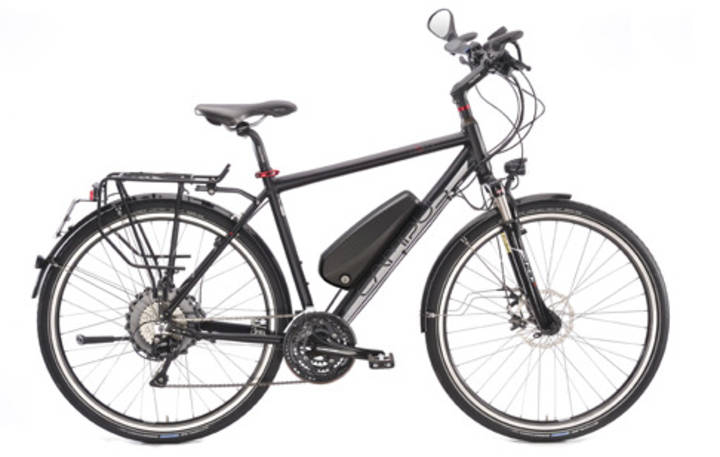

CAMPUS GSH9
- Model year 2015
- Category Trekking Bike | 28.00 inch
- E-bike type Pedelec | up to 25 kmh
- Frame unisex
- Frame sizes 40,44,48,52,56,60,64
- Weight 24 kg
- Range 90 km
- Motor GO SwissDrive Cruise motor
- Display Standard
- Motor position rear wheel hub
- Motor power 250 watts
- Support up to 25 kmh
- Battery type Lithium-ion battery
- Akku Eigenschaften 324.00 Wh / 12.00 Ah / 36.00 V
- Battery position down tube
- Range 90 km
- Gear type hub
- Number of gears 24
- Gearshift brand Deore-Acera 24-Gang
- Brake type V-Brake

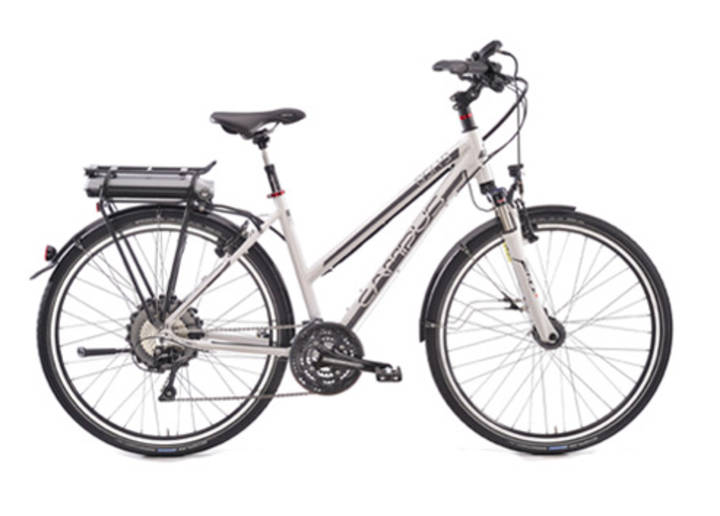

CAMPUS GSH 9 XT Deore
- Modelljahr 2017
- Category Trekking Bike | 28.00 inch
- E-bike type Pedelec | up to 25 kmh
- Frame unisex
- Frame sizes 40,44,48,52,56,60,64
- Gewicht 23 kg
- Reichweite 150 km
- Motor GO SwissDrive Standard motor / BikeBus
- Display Standard
- Motor position rear wheel hub
- Motor power 250 watts
- Support up to 25 kmh
- Battery type Lithium-ion battery
- Akku Eigenschaften 558.00 Wh / 15.50 Ah / 36.00 V
- Akku Position Gepäckträger Hinten
- Reichweite 150 km
- Derailleur type gear
- Anzahl Gänge 30
- Schaltung Marke Shimano Deore XT
- Bremsen Typ Hydraulische Felgenbremsen
- Bremsen Modell Magura HS-11
- Kompatibler Akku im Shop erhältlich:
- BMZ Gepäckträger Akku BikeBus, 446Wh 12,4Ah 18781
- Kompatibler Lader im Shop erhältlich:
- BMZ Ladegerät 42V 5A, Rosenberger, 24881-1
- Model year 2017
- Category Trekking Bike | 28.00 inch
- E-bike type Pedelec | up to 25 kmh
- Frame unisex
- Frame sizes 40,44,48,52,56,60,64
- Weight 23 kg
- Range 150 km
- Motor GO SwissDrive Standard motor
- Motor position rear wheel hub
- Motor power 250 watts
- Support up to 25 kmh
- Battery type Lithium-ion battery
- Battery features 558.00 Wh / 15.50 Ah / 36.00 V
- Battery position rear luggage carrier
- Range 150 km
- Derailleur type gear
- Number of gears 30
- Circuit Shimano Deore XT brand gears
- Brakes Type Hydraulic rim brakes
- Brake model Magura HS-11
CAMPUS GSH 9 LX
- Modelljahr 2017
- Category Trekking Bike | 28.00 inch
- E-bike type Pedelec | up to 25 kmh
- Frame unisex
- Frame sizes 40,44,48,52,56,60,64
- Gewicht 23 kg
- Reichweite 150 km
- Modelljahr 2017
- Motor GO SwissDrive Standard motor / BikeBus
- Display Standard
- Motor position rear wheel hub
- Motor power 250 watts
- Support up to 25 kmh
- Battery type Lithium-ion battery
- Akku Eigenschaften 558.00 Wh / 15.50 Ah / 36.00 V
- Akku Position Gepäckträger Hinten
- Reichweite 150 km
- Derailleur type gear
- Anzahl Gänge 30
- Schaltung Marke Shimano LX
- Bremsen Typ Hydraulische Felgenbremsen
- Bremsen Modell Magura HS-11
- Kompatibler Akku im Shop erhältlich:
- BMZ Gepäckträger Akku BikeBus, 446Wh 12,4Ah 18781
- Kompatibler Lader im Shop erhältlich:
- BMZ Ladegerät 42V 5A, Rosenberger, 24881-1
- Model year 2017
- Category Trekking Bike | 28.00 inch
- E-bike type Pedelec | up to 25 kmh
- Frame unisex
- Frame sizes 40,44,48,52,56,60,64
- Weight 23 kg
- Range 150 km
- Model year 2017
- Motor GO SwissDrive Standard motor
- Motor position rear wheel hub
- Motor power 250 watts
- Support up to 25 kmh
- Battery type Lithium-ion battery
- Battery features 558.00 Wh / 15.50 Ah / 36.00 V
- Battery position rear luggage carrier
- Range 150 km
- Derailleur type gear
- Number of gears 30
- Gearshift brand Shimano LX
- Brakes Type Hydraulic rim brakes
- Brake model Magura HS-11
CAMPUS GSH 9 Alivio
- Modelljahr 2017
- Category Trekking Bike | 28.00 inch
- E-bike type Pedelec | up to 25 kmh
- Frame unisex
- Frame sizes 40,44,48,52,56,60,64
- Gewicht 23 kg
- Reichweite 150 km
- Motor GO SwissDrive Standard motor / BikeBus
- Display Standard
- Motor position rear wheel hub
- Motor power 250 watts
- Support up to 25 kmh
- Battery type Lithium-ion battery
- Akku Eigenschaften 558.00 Wh / 15.50 Ah / 36.00 V
- Akku Position Gepäckträger Hinten
- Reichweite 150 km
- Derailleur type gear
- Number of gears 27
- Gearshift brand Shimano Alivio
- Bremsen Typ Hydraulische Felgenbremsen
- Bremsen Modell Magura HS-11
- Kompatibler Akku im Shop erhältlich:
- BMZ Gepäckträger Akku BikeBus, 446Wh 12,4Ah 18781
- Kompatibler Lader im Shop erhältlich:
- BMZ Ladegerät 42V 5A, Rosenberger, 24881-1
- Model year 2017
- Category Trekking Bike | 28.00 inch
- E-bike type Pedelec | up to 25 kmh
- Frame unisex
- Frame sizes 40,44,48,52,56,60,64
- Weight 23 kg
- Range 150 km
- Motor GO SwissDrive Standard motor
- Motor position rear wheel hub
- Motor power 250 watts
- Support up to 25 kmh
- Battery type Lithium-ion battery
- Battery features 558.00 Wh / 15.50 Ah / 36.00 V
- Battery position rear luggage carrier
- Range 150 km
- Derailleur type gear
- Number of gears 27
- Gearshift brand Shimano Alivio
- Brakes Type Hydraulic rim brakes
- Brake model Magura HS-11
CAMPUS GSH 12 TX Deore
- Modelljahr 2017
- Kategorie Mountain Bike / ATB | 27,50 Zoll
- E-bike type Pedelec | up to 25 kmh
- Frame unisex
- Rahmen Größen 44,48,52
- Gewicht 23 kg
- Reichweite 150 km
- Motor GO SwissDrive Cruise motor
- Display EVO
- Motor position rear wheel hub
- Motor power 250 watts
- Support up to 25 kmh
- Battery type Lithium-ion battery
- Akku Eigenschaften 558.00 Wh / 15.50 Ah / 36.00 V
- Battery position down tube
- Reichweite 150 km
- Derailleur type gear
- Anzahl Gänge 30
- Schaltung Marke Shimano XT Deore
- Brakes Type Hydraulic disc brakes
- Bremsen Modell Shimano M506
- Kompatibler Akku im Shop erhältlich:
- BMZ Unterrohr Akku BikeBus 15,5Ah, 558Wh 24832-1
- Kompatibler Lader im Shop erhältlich:
- BMZ Ladegerät 36V 2A, Rosenberger, 27680
- Model year 2017
- Category Mountain Bike / ATB | 27.50 inch
- E-bike type Pedelec | up to 25 kmh
- Frame unisex
- Frame sizes 44,48,52
- Weight 23 kg
- Range 150 km
- Motor GO SwissDrive Cruise motor
- Motor position rear wheel hub
- Motor power 250 watts
- Support up to 25 kmh
- Battery type Lithium-ion battery
- Battery features 558.00 Wh / 15.50 Ah / 36.00 V
- Battery position down tube
- Range 150 km
- Derailleur type gear
- Number of gears 30
- Gearshift brand Shimano XT Deore
- Brakes Type Hydraulic disc brakes
- Brake model Shimano M506
CAMPUS GSH 12 LX
- Modelljahr 2017
- Kategorie Mountain Bike / ATB | 27,50 Zoll
- E-Bike Typ Pedelec | bis 25 kmh
- Frame unisex
- Rahmen Größen 44,48,52
- Gewicht 23 kg
- Reichweite 150 km
- Motor GO SwissDrive Cruise motor
- Display EVO
- Motor position rear wheel hub
- Motor power 250 watts
- Support up to 25 kmh
- Battery type Lithium-ion battery
- Akku Eigenschaften 558.00 Wh / 15.50 Ah / 36.00 V
- Battery position down tube
- Reichweite 150 km
- Derailleur type gear
- Anzahl Gänge 30
- Schaltung Marke Shimano LX
- Brakes Type Hydraulic disc brakes
- Bremsen Modell Shimano M506
- Kompatibler Akku im Shop erhältlich:
- BMZ Unterrohr Akku BikeBus 15,5Ah, 558Wh 24832-1
- Kompatibler Lader im Shop erhältlich:
- BMZ Ladegerät 36V 2A, Rosenberger, 27680
- Model year 2017
- Category Mountain Bike / ATB | 27.50 inch
- E-bike type Pedelec | up to 25 kmh
- Frame unisex
- Frame sizes 44,48,52
- Weight 23 kg
- Range 150 km
- Motor GO SwissDrive Cruise motor
- Motor position rear wheel hub
- Motor power 250 watts
- Support up to 25 kmh
- Battery type Lithium-ion battery
- Battery features 558.00 Wh / 15.50 Ah / 36.00 V
- Battery position down tube
- Range 150 km
- Derailleur type gear
- Number of gears 30
- Gearshift brand Shimano LX
- Brakes Type Hydraulic disc brakes
- Brake model Shimano M506

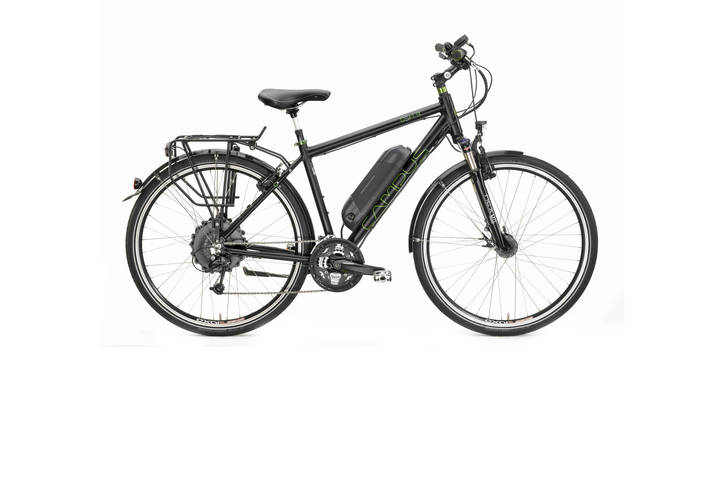

CAMPUS GSH 10 XT Deore
- Modelljahr 2017
- Category Trekking Bike | 28.00 inch
- E-Bike Typ S-Pedelec | bis 45 kmh
- Frame unisex
- Frame sizes 40,44,48,52,56,60,64
- Weight 24 kg
- Reichweite 110 km
- Motor GO SwissDrive E-Antrieb / BikeBus
- Display EVO
- Motor position rear wheel hub
- Motor Leistung 500 Watt
- Unterstützung bis 45 kmh
- Battery type Lithium-ion battery
- Akku Eigenschaften 558.00 Wh / 15.50 Ah / 36.00 V
- Battery position down tube
- Reichweite 110 km
- Derailleur type gear
- Anzahl Gänge 30
- Schaltung Marke Shimano Deore XT
- Brakes Type Hydraulic disc brakes
- Brake model Magura MT4
- Kompatibler Akku im Shop erhältlich:
- BMZ Unterrohr Akku BikeBus 15,5Ah, 558Wh 24832-1
- Kompatibler Lader im Shop erhältlich:
- BMZ Ladegerät 36V 2A, Rosenberger, 27680
- Model year 2017
- Category Trekking Bike | 28.00 inch
- E-bike type S-Pedelec | up to 45 kmh
- Frame unisex
- Frame sizes 40,44,48,52,56,60,64
- Weight 24 kg
- Range 110 km
- Motor GO SwissDrive E-Antrieb
- Motor position rear wheel hub
- Motor power 500 watts
- Support up to 45 kmh
- Battery type Lithium-ion battery
- Battery features 558.00 Wh / 15.50 Ah / 36.00 V
- Battery position down tube
- Range 110 km
- Derailleur type gear
- Number of gears 30
- Circuit Shimano Deore XT brand gears
- Brakes Type Hydraulic disc brakes
- Brake model Magura MT4
CAMPUS GSH 10 LX
- Akku 500–625 Wh
- Go Swiss Drive Motor für bis zu 45 km/h / BikeBus
- Display Standard
- Rahmen Stabiler Rahmen
- Fahrverhalten Ideal für anspruchsvolle Touren
- Ausstattung Kombination aus XT und Deore Komponenten
- Modelljahr 2017
- Kategorie Trekking Bike | 28,00 Zoll
- E-Bike Typ S-Pedelec | bis 45 kmh
- Frame unisex
- Frame sizes 40,44,48,52,56,60,64
- Weight 24 kg
- Reichweite 110 km
- Motor GO SwissDrive E-Antrieb / Can Bus
- Display EVO
- Motor position rear wheel hub
- Motor Leistung 500 Watt
- Unterstützung bis 45 kmh
- Battery type Lithium-ion battery
- Akku Eigenschaften 558.00 Wh / 15.50 Ah / 36.00 V
- Battery position down tube
- Reichweite 110 km
- Kompatibler Akku im Shop erhältlich:
- BMZ Unterrohr Akku BikeBus 15,5Ah, 558Wh 24832-1
- Kompatibler Lader im Shop erhältlich:
- BMZ Ladegerät 36V 2A, Rosenberger, 27680
- Battery 500–625 Wh
- Go Swiss Drive motor for up to 45 km/h
- Frame Sturdy frame
- Riding characteristics Ideal for demanding tours
- Equipment Combination of XT and Deore components
- Model year 2017
- Category Trekking Bike | 28.00 inch
- E-bike type S-Pedelec | up to 45 kmh
- Frame unisex
- Frame sizes 40,44,48,52,56,60,64
- Weight 24 kg
- Range 110 km
- Motor GO SwissDrive E-Antrieb
- Motor position rear wheel hub
- Motor power 500 watts
- Support up to 45 kmh
- Battery type Lithium-ion battery
- Battery features 558.00 Wh / 15.50 Ah / 36.00 V
- Battery position down tube
- Range 110 km
CAMPUS GSH 10 Alivio
- Battery: 500-625 Wh (depending on model)
- Motor: GO SwissDrive, up to 45 km/h
- Display Standard
- Frame: Robust frame, ideal for sporty riding
- Riding behavior: Well suited for commuting and longer tours
- Equipment: Alivio components, good brakes and comfortable suspension
- Frame sizes: 40, 44, 48, 52, 56, 60, 64
- Range: Up to 110 km
- Motor position: Rear wheel hub
- Motor power: 500 watts
- Battery: Lithium-ion battery, 558 Wh / 15.50 Ah / 36.00 V
- Battery position: Down tube
- Model year: 2017
- E-bike type: S-Pedelec (bis 45 km/h )
- Derailleur type gear
- Number of gears 27
- Gearshift brand Shimano Alivio
- Brakes Type Hydraulic disc brakes
- Brake model Magura MT4
CAMPUS GSH 10 Deore
- Akku: 500–625 Wh
- Motor: GO SwissDrive, bis 45 km/h / BikeBus
- Display Standard
- Rahmen: Robuster Rahmen für verschiedene Terrains
- Fahrverhalten: Vielseitig einsetzbar, gut für unterschiedliche Strecken
- Ausstattung: Deore Komponenten, zuverlässige Bremsen
- Frame sizes: 40, 44, 48, 52, 56, 60, 64
- Range: Up to 110 km
- Motor position: Rear wheel hub
- Motor power: 500 watts
- Battery: Lithium-ion battery, 558 Wh / 15.50 Ah / 36.00 V
- Battery position: Down tube
- Model year: 2017
- E-Bike Typ: S-Pedelec (bis 45 km/h)
- Derailleur type gear
- Anzahl Gänge 30
- Schaltung Marke Shimano Deore XT
- Brakes Type Hydraulic disc brakes
- Brake model Magura MT4
- Kompatibler Akku im Shop erhältlich:
- BMZ Unterrohr Akku BikeBus 15,5Ah, 558Wh 24832-1
- Kompatibler Lader im Shop erhältlich:
- BMZ Ladegerät 36V 2A, Rosenberger, 27680
- Battery: 500-625 Wh
- Motor: GO SwissDrive, up to 45 km/h
- Frame: Robust frame for different terrains
- Driving behavior: Versatile, good for different routes
- Equipment: Deore components, reliable brakes
- Frame sizes: 40, 44, 48, 52, 56, 60, 64
- Range: Up to 110 km
- Motor position: Hinterradnabe
- Motor power: 500 watts
- Battery: Lithium-ion battery, 558 Wh / 15.50 Ah / 36.00 V
- Battery position: Down tube
- Model year: 2017
- E-Bike Typ: S-Pedelec (bis 45 km/h)
- Derailleur type gear
- Number of gears 30
- Circuit Shimano Deore XT brand gears
- Brakes Type Hydraulic disc brakes
- Brake model Magura MT4
Spare parts and repair service
Bring your Campus with Go SwissDrive system to us for service or repair. We specialize in this and can help you with any questions or defects.
Resources:
- First aid and frequently asked questions with extensive documentation
- Knowledge page on the defect of bicycle freewheels
- Knowledge page on display defects
- Repair and spare parts service
Send us your request. We have already implemented logistics solutions for Switzerland and Germany so that transportation is no longer an obstacle.
Send request
Describe your request to us as precisely as possible. The more we know about your e-bike and the problem, the faster we can help you. Fields marked with * are required.
Thank you, we have received your request.
We will get back to you as soon as possible. You will receive a confirmation with your ticket number by email.
