CHEETAH E-Bikes
Models with Go SwissDrive
Some CHEETAH models are equipped with Go SwissDrive systems. Do you ride a CHEETAH and need a repair or are you looking for a competent maintenance service? Then you've come to the right place.
Table of Contents
About the Cheetah brand
Cheetah Bikes is a German manufacturer that specializes in customizable mountain bikes and e-bikes.
Cheetah Bikes offers e-bikes with powerful Go SwissDrive motors that provide exceptional riding dynamics. The models are suitable for both leisure riders and demanding touring cyclists and offer a variety of innovative technologies and exclusive transmission options.
Cheetah e-bike models with Go SwissDrive systems
The Go SwissDrive system has been installed in some models of the Cheetah e-bikes.
The motor system can be found in the models:
- CHEETAH ForPleasure 27.5 Zoll
- CHEETAH ForPleasure 29 Zoll
- CHEETAH E-Fully Mountainspirit 27.5
- CHEETAH E-Fully MountainSpirit 29
Besonderheiten der Modelle
The brand specifically relies on the GO SwissDrive motor for these models, as it impresses with its efficient performance, consistent support and long range. The positioning as a rear hub motor ensures ideal weight distribution and improves the stability of the bikes. This is particularly important for CHEETAH, as the models are designed for reliability and long-lasting comfort.
CHEETAH ForPleasure 29 Zoll
- Modelljahr 2016
- Kategorie Mountain Bike / ATB | 29,00 Zoll
- E-Bike Typ Pedelec | bis 25 kmh
- Rahmen Unisex
- Rahmen Größen 35,43,47,49
- Gewicht 19 kg
- Reichweite 120 km
- Motor GO SwissDrive Cruise motor / BikeBus
- Display EVO
- Motor Position Hinterradnabe
- Motor Leistung 250 Watt
- Unterstützung bis 25 kmh
- Akku Typ Lithium-Ionen Akku
- Akku Eigenschaften 576.00 Wh / 16.00 Ah / 36.00 V
- Reichweite 120 km
- Schaltung Typ Kettenschaltung
- Anzahl Gänge 10
- Schaltung Marke SRAM X9
- Bremsen Typ Hydraulische Scheibenbremsen
- Bremsen Modell Sram DB5 200/200mm
- Kompatibler Akku im Shop erhältlich:
- BMZ Unterrohr Akku BikeBus 15,5Ah, 558Wh 24832-1
- Kompatibler Lader im Shop erhältlich:
- BMZ Ladegerät 42V 5A, Rosenberger, 24881-1
- Model year 2016
- Category Mountain Bike / ATB | 29.00 inch
- E-bike type Pedelec | up to 25 kmh
- Frame unisex
- Frame sizes 35,43,47,49
- Weight 19 kg
- Range 120 km
- Motor GO SwissDrive Cruise motor
- Motor position rear wheel hub
- Motor power 250 watts
- Support up to 25 kmh
- Battery type Lithium-ion battery
- Battery characteristics 576.00 Wh / 16.00 Ah / 36.00 V
- Range 120 km
- Derailleur type gear
- Number of gears 10
- Gearshift brand SRAM X9
- Brakes Type Hydraulic disc brakes
- Brake model Sram DB5 200/200mm

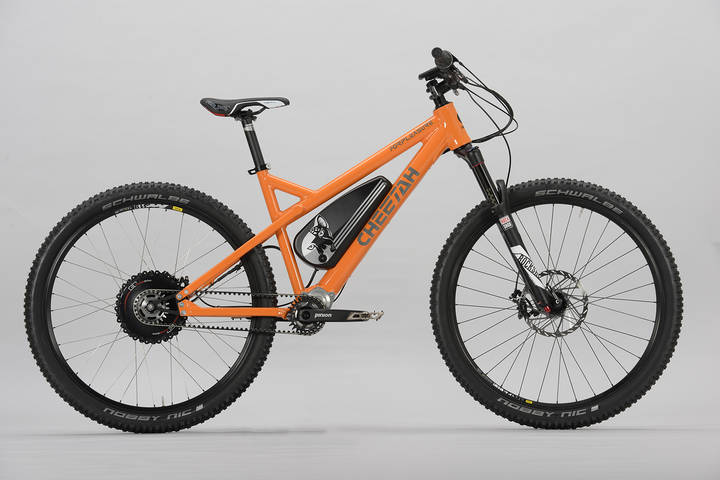

CHEETAH ForPleasure 27.5 Zoll
- Modelljahr 2016
- Kategorie Mountain Bike / ATB | 27,50 Zoll
- E-Bike Typ Pedelec | bis 25 kmh
- Rahmen Unisex
- Rahmen Größen 35,43,47,49
- Reichweite 120 km
- Motor GO SwissDrive Cruise motor / BikeBus
- Display EVO
- Motor Position Hinterradnabe
- Motor Leistung 250 Watt
- Unterstützung bis 25 kmh
- Akku Typ Lithium-Ionen Akku
- Akku Eigenschaften 576.00 Wh / 16.00 Ah / 36.00 V
- Akku Position Unterrohr
- Reichweite 120 km
- Schaltung Typ Kettenschaltung
- Anzahl Gänge 10
- Schaltung Marke SRAM X9
- Bremsen Typ Hydraulische Scheibenbremsen
- Bremsen Modell Sram DB5 200/200mm
- Kompatibler Akku im Shop erhältlich:
- BMZ Unterrohr Akku BikeBus 15,5Ah, 558Wh 24832-1
- Kompatibler Lader im Shop erhältlich:
- BMZ Ladegerät 42V 5A, Rosenberger, 24881-1
- Model year 2016
- Category Mountain Bike / ATB | 27.50 inch
- E-bike type Pedelec | up to 25 kmh
- Frame unisex
- Frame sizes 35,43,47,49
- Range 120 km
- Motor GO SwissDrive Cruise motor
- Motor position rear wheel hub
- Motor power 250 watts
- Support up to 25 kmh
- Battery type Lithium-ion battery
- Battery characteristics 576.00 Wh / 16.00 Ah / 36.00 V
- Battery position down tube
- Range 120 km
- Derailleur type gear
- Number of gears 10
- Gearshift brand SRAM X9
- Brakes Type Hydraulic disc brakes
- Brake model Sram DB5 200/200mm

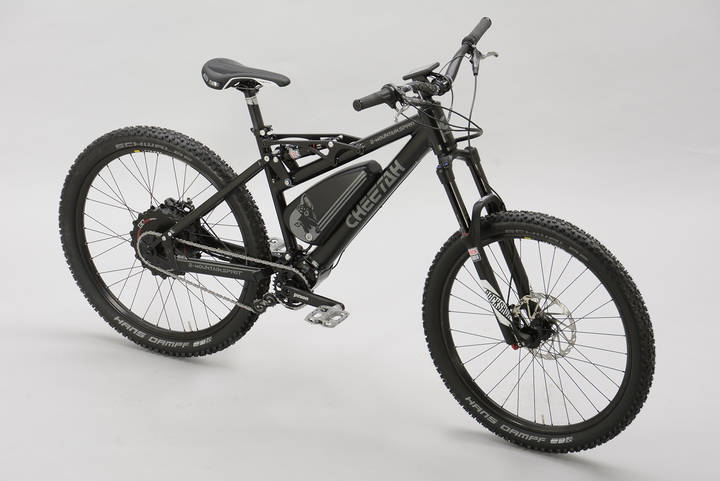

CHEETAH E-Fully Mountainspirit 27.5
- Modelljahr 2016
- Kategorie Mountain Bike / ATB | 29,00 Zoll
- E-Bike Typ Pedelec | bis 25 kmh
- Rahmen Unisex
- Rahmen Größen 45,50,55,60
- Gewicht 20 kg
- Reichweite 140 km
- Motor GO SwissDrive Cruise motor / BikeBus
- Display EVO
- Motor Position Hinterradnabe
- Schaltung Typ Kettenschaltung
- Anzahl Gänge 10
- Schaltung Marke SRAM X9
- Bremsen Typ Hydraulische Scheibenbremsen
- Bremsen Modell Sram DB5 200/200mm
- Motor Leistung 250 Watt
- Unterstützung bis 25 kmh
- Akku Typ Lithium-Ionen Akku
- Akku Eigenschaften 576.00 Wh / 16.00 Ah / 36.00 V
- Akku Position Oberrohr
- Reichweite 140 km
- Kompatibler Akku im Shop erhältlich:
- BMZ Unterrohr Akku BikeBus 15,5Ah, 558Wh 24832-1
- Kompatibler Lader im Shop erhältlich:
- BMZ Ladegerät 42V 5A, Rosenberger, 24881-1
- Model year 2016
- Category Mountain Bike / ATB | 29.00 inch
- E-bike type Pedelec | up to 25 kmh
- Frame unisex
- Frame sizes 45,50,55,60
- Weight 20 kg
- Range 140 km
- Motor GO SwissDrive Cruise motor
- Motor position rear wheel hub
- Derailleur type gear
- Number of gears 10
- Gearshift brand SRAM X9
- Brakes Type Hydraulic disc brakes
- Brake model Sram DB5 200/200mm
- Motor power 250 watts
- Support up to 25 kmh
- Battery type Lithium-ion battery
- Battery characteristics 576.00 Wh / 16.00 Ah / 36.00 V
- Battery position top tube
- Range 140 km

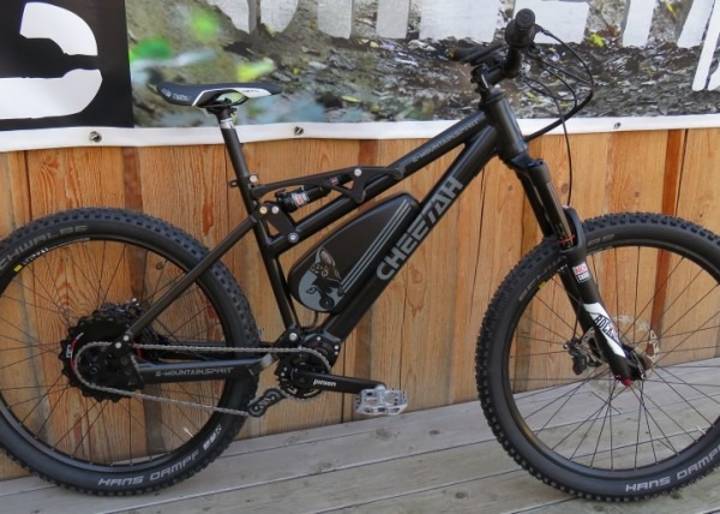

CHEETAH E-Fully MountainSpirit 29
- Modelljahr 2016
- Preis UVP 3.699€
- Kategorie Mountain Bike / ATB | 29,00 Zoll
- E-Bike Typ Pedelec | bis 25 kmh
- Rahmen Unisex
- Rahmen Größen 45,50,55,60
- Gewicht 20 kg
- Reichweite 140 km
- Motor GO SwissDrive Cruise motor / BikeBus
- Display EVO
- Motor Position Hinterradnabe
- Motor Leistung 250 Watt
- Unterstützung bis 25 kmh
- Akku Typ Lithium-Ionen Akku
- Akku Eigenschaften 576.00 Wh / 16.00 Ah / 36.00 V
- Akku Position Oberrohr
- Reichweite 140 km
- Schaltung Typ Kettenschaltung
- Anzahl Gänge 10
- Schaltung Marke SRAM X9
- Bremsen Typ Hydraulische Scheibenbremsen
- Bremsen Modell Sram DB5 200/200mm
- Kompatibler Akku im Shop erhältlich:
- BMZ Unterrohr Akku BikeBus 15,5Ah, 558Wh 24832-1
- Kompatibler Lader im Shop erhältlich:
- BMZ Ladegerät 42V 5A, Rosenberger, 24881-1
- Model year 2016
- Preis UVP 3.699€
- Category Mountain Bike / ATB | 29.00 inch
- E-bike type Pedelec | up to 25 kmh
- Frame unisex
- Frame sizes 45,50,55,60
- Weight 20 kg
- Range 140 km
- Motor GO SwissDrive Cruise motor
- Motor position rear wheel hub
- Motor power 250 watts
- Support up to 25 kmh
- Battery type Lithium-ion battery
- Battery characteristics 576.00 Wh / 16.00 Ah / 36.00 V
- Battery position top tube
- Range 140 km
- Derailleur type gear
- Number of gears 10
- Gearshift brand SRAM X9
- Brakes Type Hydraulic disc brakes
- Brake model Sram DB5 200/200mm
Spare parts and repair service
Bring your CHEETAH with Go SwissDrive system to us for service or repair. We specialize in this and can help you with any questions or defects.
Resources:
- First aid and frequently asked questions with extensive documentation
- Knowledge page on the defect of bicycle freewheels
- Knowledge page on display defects
- Repair and spare parts service
Send us your request. We have already implemented logistics solutions for Switzerland and Germany so that transportation is no longer an obstacle.
Send request
Describe your request to us as precisely as possible. The more we know about your e-bike and the problem, the faster we can help you. Fields marked with * are required.
Thank you, we have received your request.
We will get back to you as soon as possible. You will receive a confirmation with your ticket number by email.
