ISY CARGO Modells with Go SwissDrive
Some ISY CARGO models are equipped with Go SwissDrive systems. Are you riding an ISY CARGO and need a repair or are you looking for a competent maintenance service? Then you've come to the right place.
Table of Contents
About the ISY CARGO brand

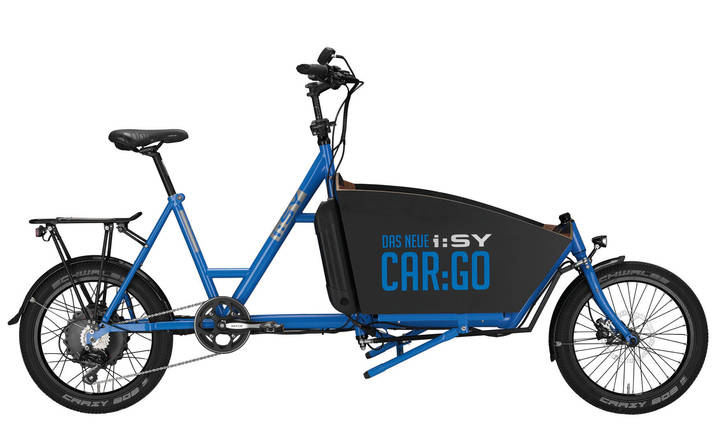

ISY CARGO is a compact e-cargo bike that has been specially developed for urban use. Thanks to its compact design and low frame, it is very maneuverable and enables a comfortable ride even when fully loaded. With a powerful electric drive and a stable luggage area, the ISY CARGO is ideal for transporting shopping, parcels or other loads. The wheels are small and robust, which ensures stability and good maneuverability. The ISY CARGO combines functionality with a clever, space-saving design and is the perfect choice for modern, environmentally friendly mobility in the city.
ISY CARGO models with Go SwissDrive systems
The Go SwissDrive system has been installed in some models of the ISY CARGO e-bikes.
The motor system can be found in the models:
- ISY CARGO 10-Gang Shimano Deore XT
- ISY CARGO 9-Gang Shimano Sora
- ISY CARGO 10-Gang Deore XT
- ISY CARGO 9-Gang Acera
ISY CARGO 9-Gang Acera
- Modelljahr 2015
- Kategorie Lastenrad | 20,00 Zoll
- E-Bike Typ Pedelec | bis 25 kmh
- Rahmen Tiefeinsteiger
- Rahmen Größen 48
- Gewicht 30 kg
- Zulässiges Gesamtgewicht 120 kg
- Reichweite 80 km
- Motor GO SwissDrive E-Antrieb / BikeBus
- Display Standard
- Motor Position Hinterradnabe
- Motor Leistung 500 Watt
- Unterstützung bis 25 kmh
- Akku Typ Lithium-Ionen Akku
- Akku Eigenschaften 522.00 Wh / 11.11 Ah / 36.00 V
- Akku Position Unterrohr
- Reichweite 80 km
- Schaltung Typ Nabenschaltung
- Anzahl Gänge 9
- Bremsen Typ Hydraulische Felgenbremsen
- Bremsen Modell Magura HS 11
- Kompatibler Akku im Shop erhältlich:
- BMZ Unterrohr Akku BikeBus 15,5Ah, 558Wh 24832-1
- Kompatibler Lader im Shop erhältlich:
- BMZ Ladegerät 42V 5A, Rosenberger, 24881-1
- Model year 2015
- Category cargo bike | 20.00 inch
- E-bike type Pedelec | up to 25 kmh
- Frame sizes 48
- Frame sizes 48
- Weight 30 kg
- Permissible total weight 120 kg
- Range 80 km
- Motor GO SwissDrive E-Antrieb
- Motor position rear wheel hub
- Motor power 500 watts
- Support up to 25 kmh
- Battery type Lithium-ion battery
- Battery characteristics 522.00 Wh / 11.11 Ah / 36.00 V
- Battery position down tube
- Range 80 km
- Gear type hub
- Number of gears 9
- Brakes Type Hydraulic rim brakes
- Brakes model Magura HS 11
ISY CARGO 10-Gang Deore XT
- Modelljahr 2015
- Kategorie Lastenrad | 20,00 Zoll
- E-Bike Typ Pedelec | bis 25 kmh
- Rahmen Tiefeinsteiger
- Rahmen Größen 48
- Gewicht 30 kg
- Zulässiges Gesamtgewicht 120 kg
- Reichweite 80 km *
- Motor GO SwissDrive E-Antrieb / BikeBus
- Display Standard
- Motor Position Hinterradnabe
- Motor Leistung 500 Watt
- Unterstützung bis 25 kmh
- Akku Typ Lithium-Ionen Akku
- Akku Eigenschaften 522.00 Wh / 11.11 Ah / 36.00 V
- Akku Position Unterrohr
- Reichweite 80 km
- Schaltung Typ Kettenschaltung
- Anzahl Gänge 10
- Schaltung Marke Shimano Deore XT
- Bremsen Typ Hydraulische Scheibenbremsen
- Bremsen Modell Tektro Draco
- Kompatibler Akku im Shop erhältlich:
- BMZ Unterrohr Akku BikeBus 15,5Ah, 558Wh 24832-1
- Kompatibler Lader im Shop erhältlich:
- BMZ Ladegerät 42V 5A, Rosenberger, 24881-1
- Model year 2015
- Category cargo bike | 20.00 inch
- E-bike type Pedelec | up to 25 kmh
- Frame low entry
- Frame sizes 48
- Weight 30 kg
- Permissible total weight 120 kg
- Range 80 km
- Motor GO SwissDrive E-Antrieb
- Motor position rear wheel hub
- Motor power 500 watts
- Support up to 25 kmh
- Battery type Lithium-ion battery
- Battery characteristics 522.00 Wh / 11.11 Ah / 36.00 V
- Battery position down tube
- Range 80 km
- Derailleur type gear
- Number of gears 10
- Circuit Shimano Deore XT brand gears
- Brakes Type Hydraulic disc brakes
- Brake model Tektro Draco
ISY CARGO 10-Gang Shimano Deore XT
- Modelljahr 2016
- Kategorie Lastenrad | 20,00 Zoll
- E-Bike Typ Pedelec | bis 25 kmh
- Rahmen Unisex
- Rahmen Größen 46
- Zulässiges Gesamtgewicht 190 kg
- Reichweite 120 km
- Motor GO SwissDrive Cruise / BikeBus
- Display Standard
- Motor Position Hinterradnabe
- Motor Leistung 250 Watt
- Unterstützung bis 25 kmh
- Akku Typ Lithium-Ionen Akku
- Akku Eigenschaften 558.00 Wh / 15.50 Ah / 36.00 V
- Akku Position Sattelrohr
- Reichweite 120 km
- Schaltung Typ Kettenschaltung
- Anzahl Gänge 10
- Schaltung Marke Shimano Deore XT
- Bremsen Typ Hydraulische Scheibenbremsen
- Bremsen Modell Tektro Draco
- Kompatibler Akku im Shop erhältlich:
- BMZ Unterrohr Akku BikeBus 15,5Ah, 558Wh 24832-1
- Kompatibler Lader im Shop erhältlich:
- BMZ Ladegerät 42V 5A, Rosenberger, 24881-1
- Model year 2016
- Category cargo bike | 20.00 inch
- E-bike type Pedelec | up to 25 kmh
- Frame unisex
- Frame sizes 46
- Permissible total weight 190 kg
- Range 120 km
- Motor GO SwissDrive Cruise
- Motor position rear wheel hub
- Motor power 250 watts
- Support up to 25 kmh
- Battery type Lithium-ion battery
- Battery features 558.00 Wh / 15.50 Ah / 36.00 V
- Battery position seat tube
- Range 120 km
- Derailleur type gear
- Number of gears 10
- Circuit Shimano Deore XT brand gears
- Brakes Type Hydraulic disc brakes
- Brake model Tektro Draco
ISY CARGO 9-Gang Shimano Sora
- Modelljahr 2016
- Kategorie Lastenrad | 20,00 Zoll
- E-Bike Typ Pedelec | bis 25 kmh
- Rahmen Unisex
- Rahmen Größen 46
- Zulässiges Gesamtgewicht 190 kg
- Reichweite 120 km
- Motor GO SwissDrive Cruise / BikeBus
- Display Standard
- Motor Position Hinterradnabe
- Motor Leistung 250 Watt
- Akku Typ Lithium-Ionen Akku
- Akku Eigenschaften 558.00 Wh / 15.50 Ah / 36.00 V
- Akku Position Sattelrohr
- Reichweite 120 km
- Schaltung Typ Kettenschaltung
- Anzahl Gänge 9
- Schaltung Marke Shimano Sora
- Bremsen Typ Hydraulische Scheibenbremsen
- Bremsen Modell Tektro Draco
- Kompatibler Akku im Shop erhältlich:
- BMZ Unterrohr Akku BikeBus 15,5Ah, 558Wh 24832-1
- Kompatibler Lader im Shop erhältlich:
- BMZ Ladegerät 42V 5A, Rosenberger, 24881-1
- Model year 2016
- Category cargo bike | 20.00 inch
- E-bike type Pedelec | up to 25 kmh
- Frame unisex
- Frame sizes 46
- Permissible total weight 190 kg
- Range 120 km
- Motor GO SwissDrive Cruise
- Motor position rear wheel hub
- Motor power 250 watts
- Battery type Lithium-ion battery
- Battery features 558.00 Wh / 15.50 Ah / 36.00 V
- Battery position seat tube
- Range 120 km
- Derailleur type gear
- Number of gears 9
- Gearshift brand Shimano Sora
- Brakes Type Hydraulic disc brakes
- Brake model Tektro Draco
Spare parts and repair service
Bring your ISY CARGO with Go SwissDrive system to us for service or repair. We specialize in this and can help you with any questions or defects.
Resources:
- First aid and frequently asked questions with extensive documentation
- Knowledge page on the defect of bicycle freewheels
- Knowledge page on display defects
- Repair and spare parts service
Send us your request. We have already implemented logistics solutions for Switzerland and Germany so that transportation is no longer an obstacle.
